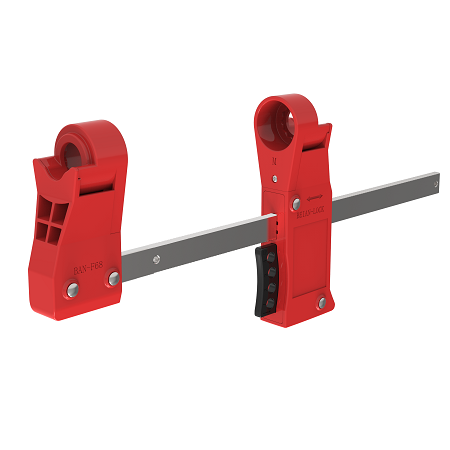

Blind Flange Lockout BAN-F68M

Item No: BAN-F68M

Unit: Piece

Material: PA66+ 33% Fiber + Steel

Weight: 550g

Color: Red

PDF File INQUIRY

Description:

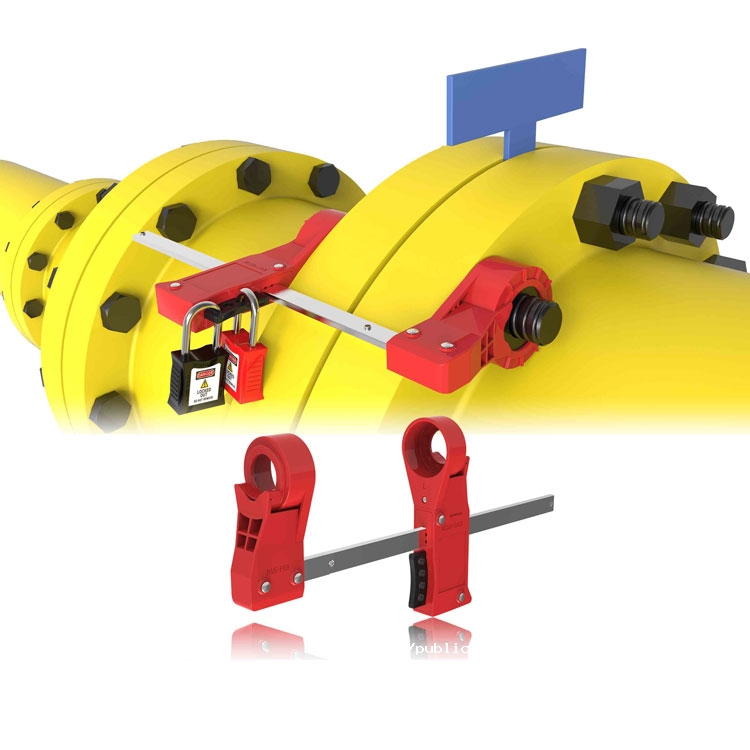

· Device fully conceals flange bolts preventing access to the blind until all work has been completed

· Adjustable device provides a tight fit, adapting to multiple flanged pipe applications

· Recommended for use with nut diameter from 3/4in to 1-1/8in (19mm – 28.7mm)

· Four lockout holes allow for multiple workers to lockout device at one time

· Durable aluminum and hardened steel construction withstands conditions indoors and out

Item No.	BAN-F68M
Description	Blind Flange Lockout Device - Middle
Recommended Nut Diameter	3/4in - 1-1/8in (19mm - 28.7mm)
Pipe Diameter Range	1/2in - 3in (12.7mm - 76.2mm)
Pipe Flange Width Range	1-1/2in - 5-5/8in (38.1mm - 143.3mm)
Max Shackle Diameter	9/32in (7mm)
Material	PA66 +33% Fiber and Q235 Carbon Steel
Operation Temperature	-40°F - 200°F
