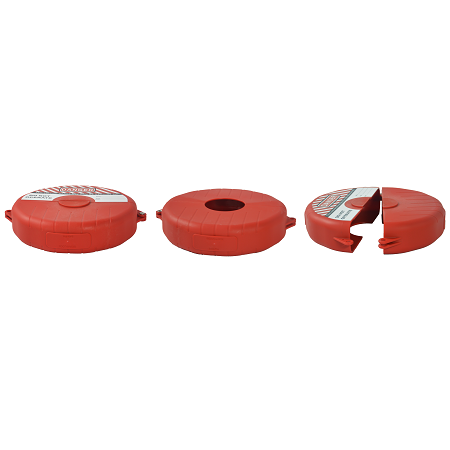

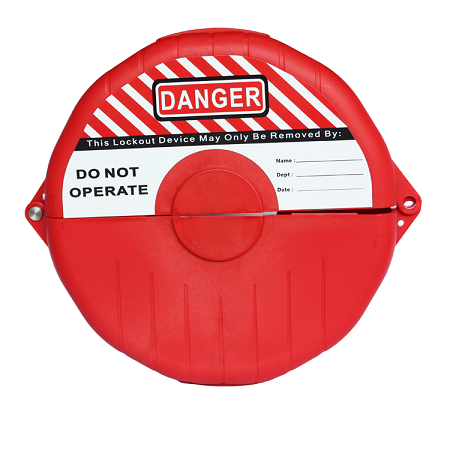

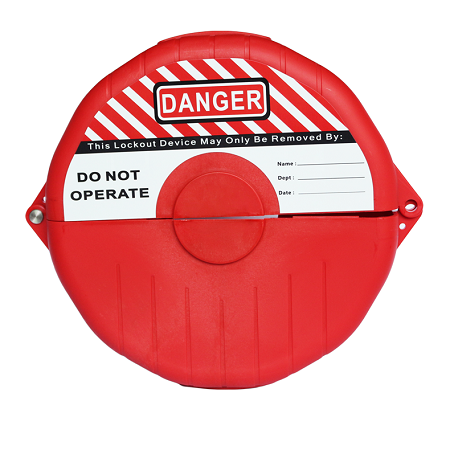

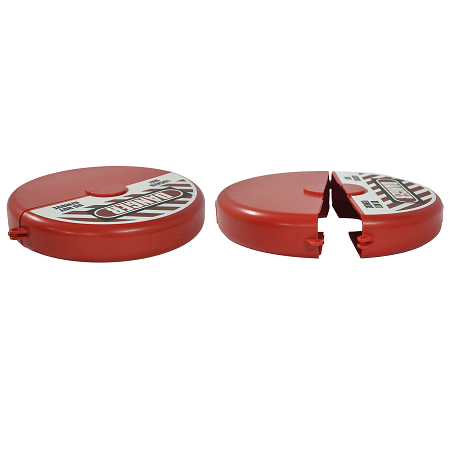

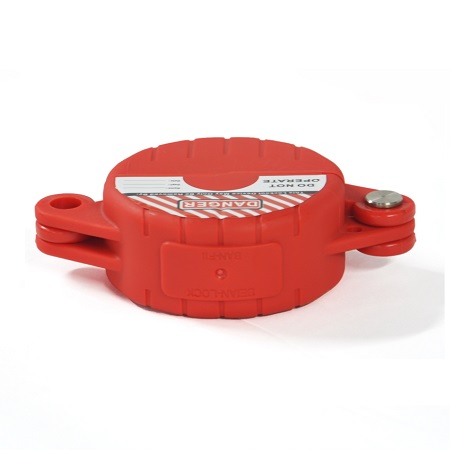

Gate Valve Lockouts BAN-F11/F12/F13/F14/F15/F15Plus

Item No.: BAN-F11/F12/F13/F14/F15/F15PLUS

Unit: Piece

Material: Nylon+ 13% Fiber

Color: Red

PDF File INQUIRY

View Details

Description:


1. Made of Dupont Nylon + 13% Fiber.

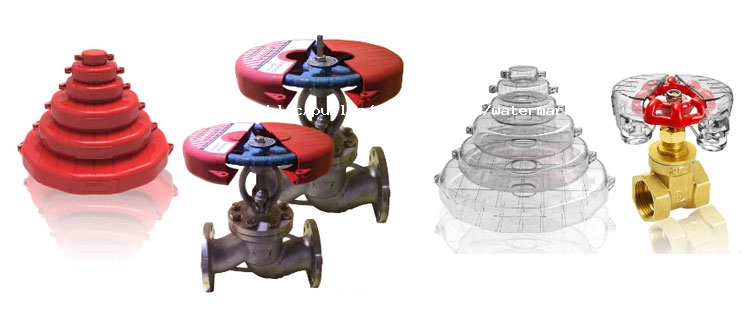

2. Available in six sizes for choice.

3. Lock with a shackle diameter up to 9.5mm.

4. Comes with warning lebels.

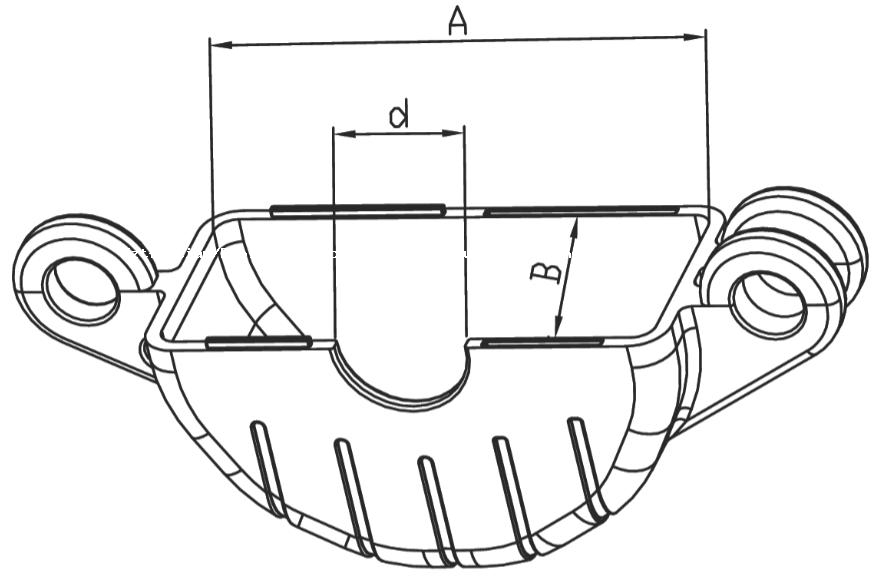

Item No.

Discription

A

B

d

BAN-F11

Stem Diameter 25mm -71.5mm(1”-2.5”)

71.5

30.5

Φ19

BAN-F12

Stem Diameter 71.5mm -134mm(2.5”-5”)

134

40

Φ45

BAN-F13

Stem Diameter 134mm -173mm(5”-6.5”)

173

45.5

Φ64

BAN-F14

Stem Diameter 173mm -273mm(6.5”-10”)

276

63

Φ90

BAN-F15

Stem Diameter 273mm -355mm(10”-13”)

355

61.5

Φ105

BAN-F15PLUS

Stem Diameter 355mm -470mm(13”-18.5”)

470

68

Φ105
